Comline® Filter 3162
Variable pump output from 250 to 850 l/h (70 to 225 US gal./h)
Energy consumption: 2.5 - 4.5 W, 230V/50Hz (115V/ 60Hz)
Dimensions (L x W x H): 110 x 90 x 255 mm (4.3" x 3.5" x 10")
Max. immersion depth: approx. 230 mm (9.1")
Fixed by means of Magnet Holder up to a pane thickness of 12 mm (½").
Specifications
The TUNZE® Comline® opens the way for compact aquarium components for internal operation, ultra functional, sophisticated, with clearly defined lines.
The Comline® is a multi-functional product line: Surface and substrate zone intake, high flow propeller pump filter, flash protein skimming, the system creates a natural environment in the aquarium with a compact footprint. The goal, more performance from less space. Comline® components meet these requirements and the visual harmony of the aquarium is maintained. It is no longer necessary to hide technical equipment in the aquarium; instead, it forms an integral part of it. The system is highly effective; all organic pollutants are removed from the environment directly, while the path the water has to cover is short and direct. The risk of leakage is almost zero. The highly efficient technology enables reduction of the volume of the internal equipment, as well as significantly reducing the energy consumption.
Aquarium arrangement examples

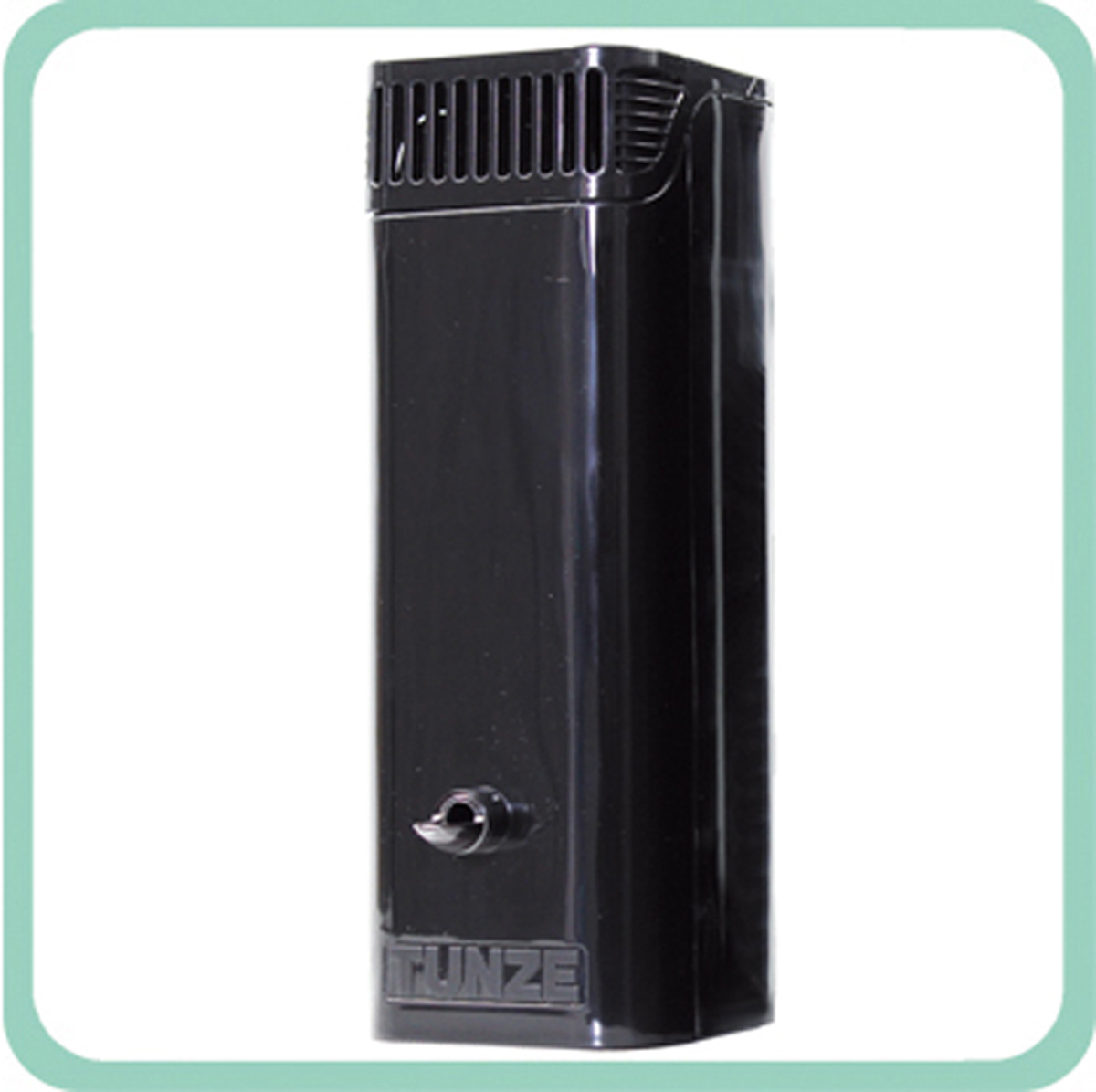

Comline® Filter 3162

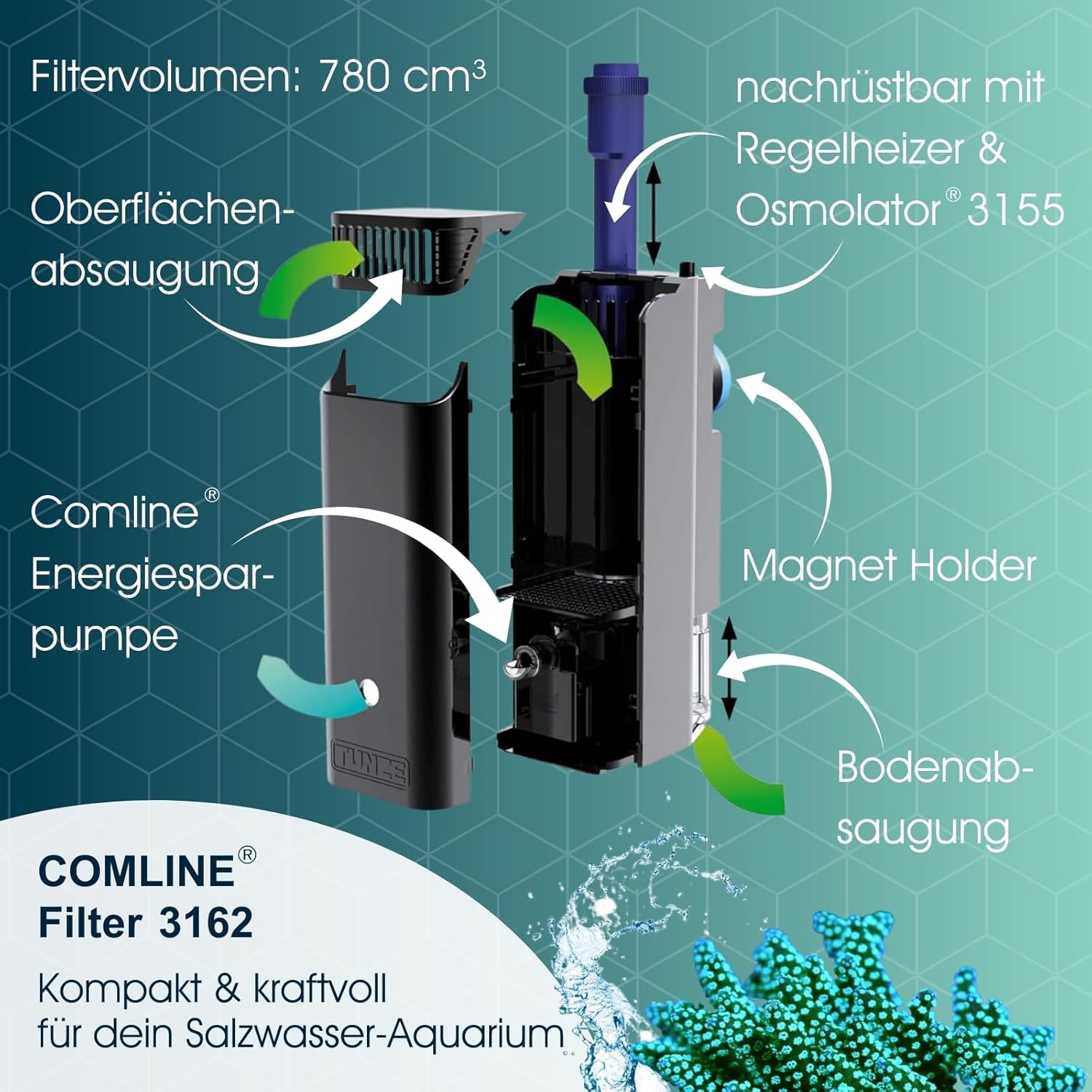

The Comline® Filter 3162 is an internal fresh and saltwater filter for 60 to 400 liters (15 to 105 USgal.), depending on tank load, with bottom and surface intake, variable output of 250 - 850 l/h
(70 - 225 USgal./h), patented Magnet Holder up to a pane thickness of 12 mm (½"). It can be upgraded with controlled heaters up to 75 W, TUNZE® Osmolator® and other Magnet Holders. The Comline® Filter 3162 is ready for installation, including filtering media and filter bags for activated carbon or other filtering media.
Energy Saving

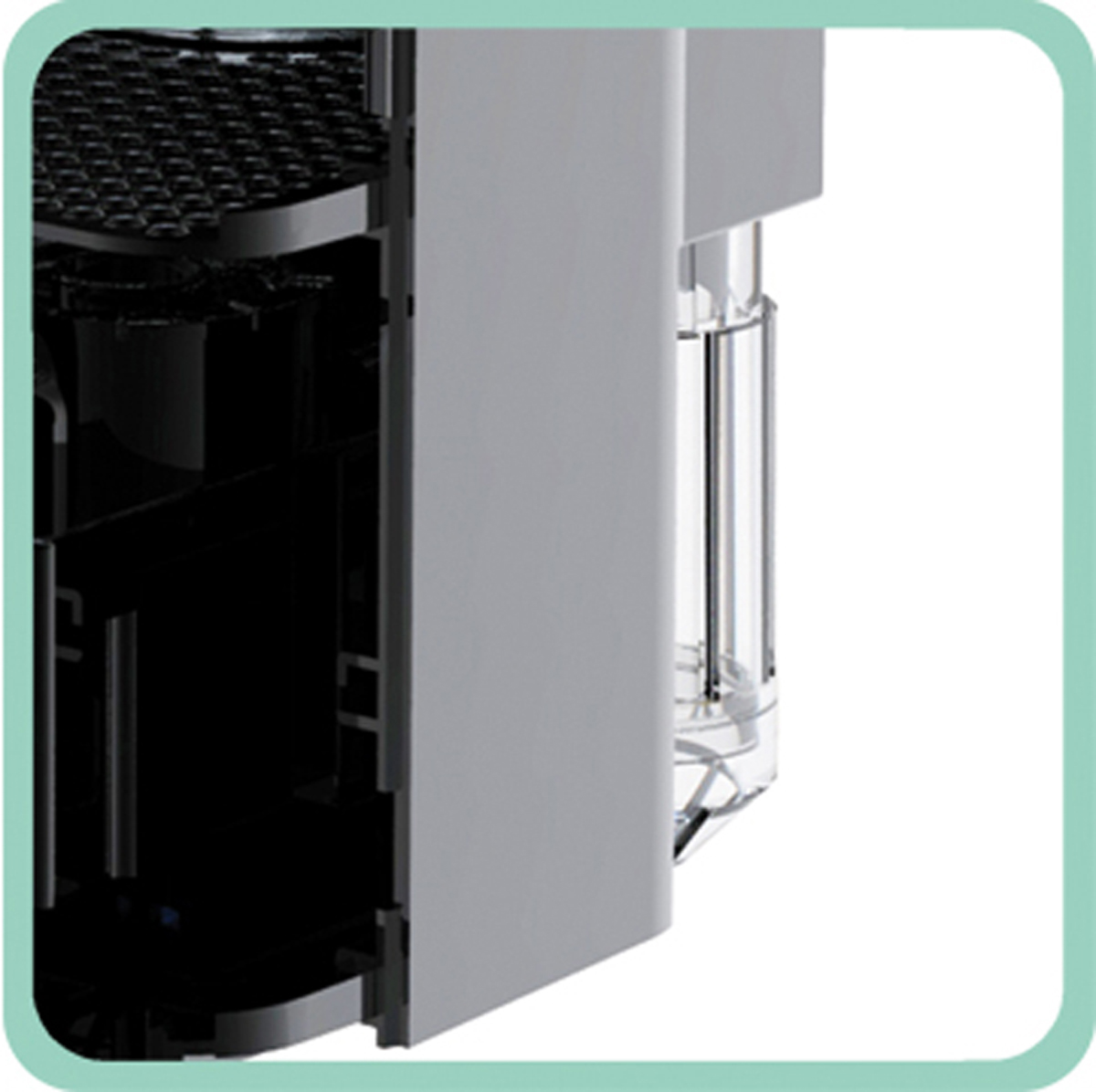

Can be retrofit with controlled heaters up to 75 W directly inside the case, better heater efficiency, no risk of burns for animals.

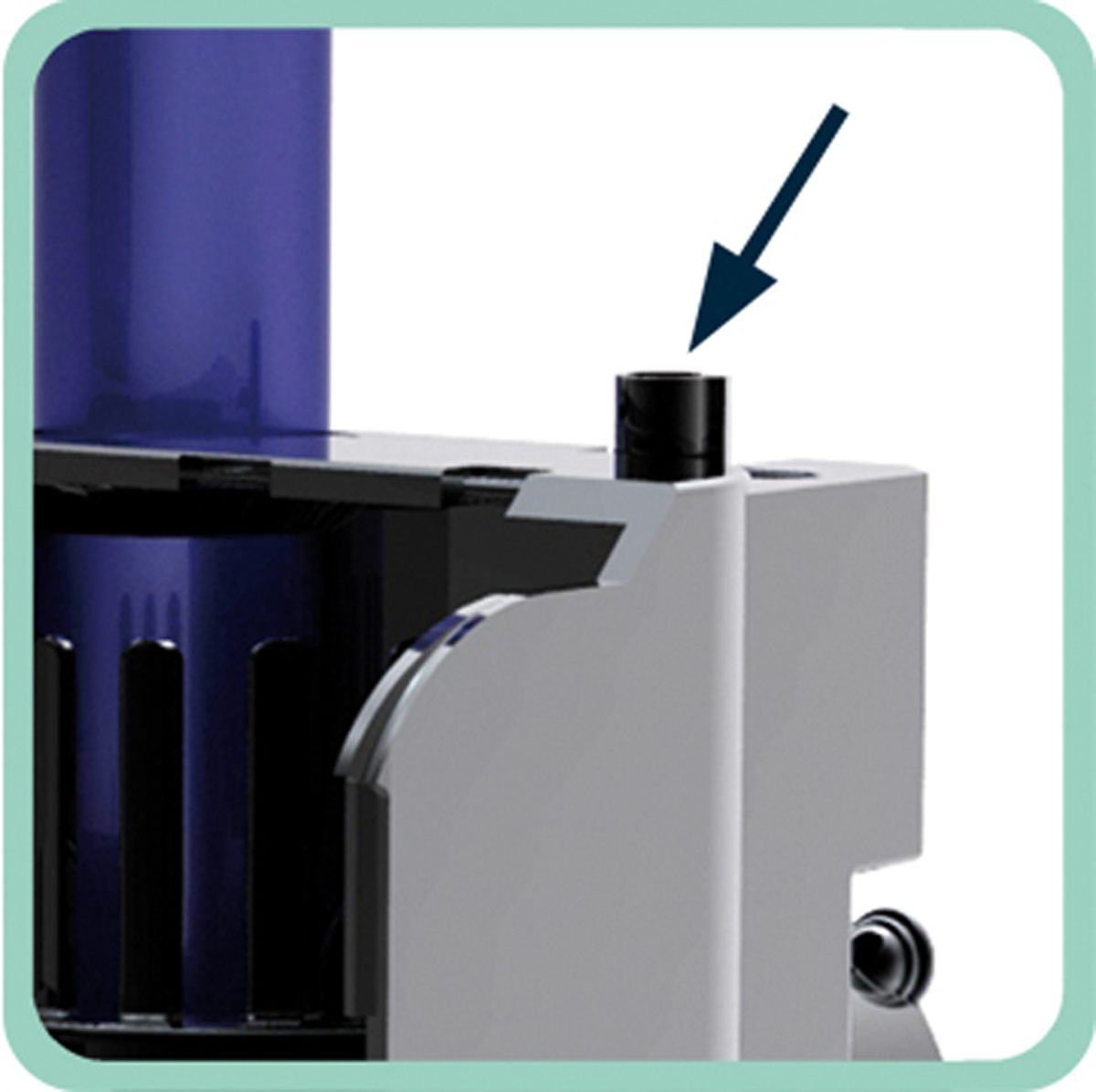

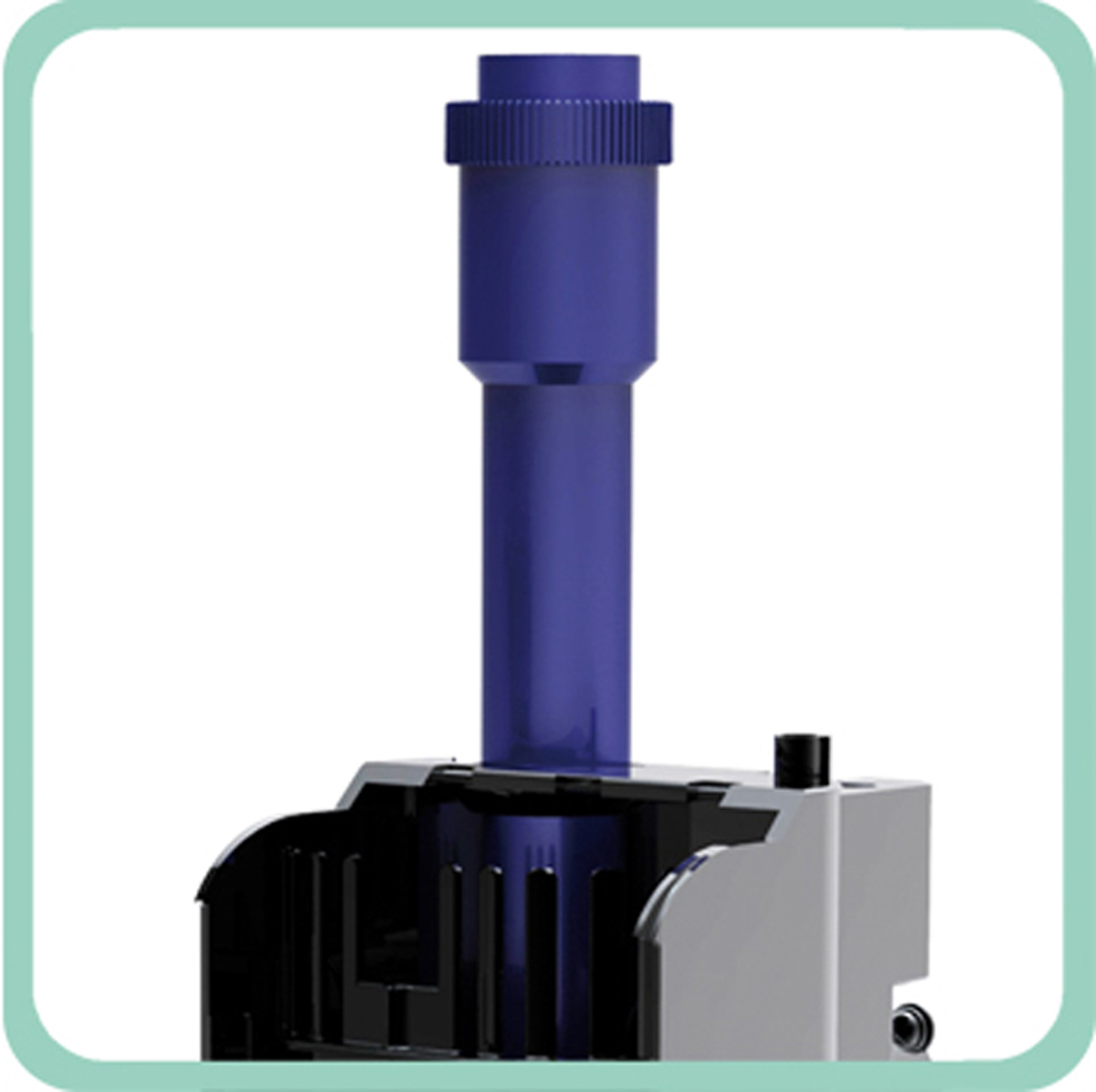

Can be retrofit with Osmolator® 3155 for water level control directly in the case.
Attachment with a patented magnet holder for a glass thickness of up to 12 mm (½ ").
Large filtering volume of 780 cm³ (0.21 USgall.)
Refillable with the following filter media:
Micro wadding 0872.000 / 0872.010 / 0872.050
Macro wadding 0873.000 / 0873.010 / 0873.050
Filter Carbon 0870.901 / 0870.950 in practical

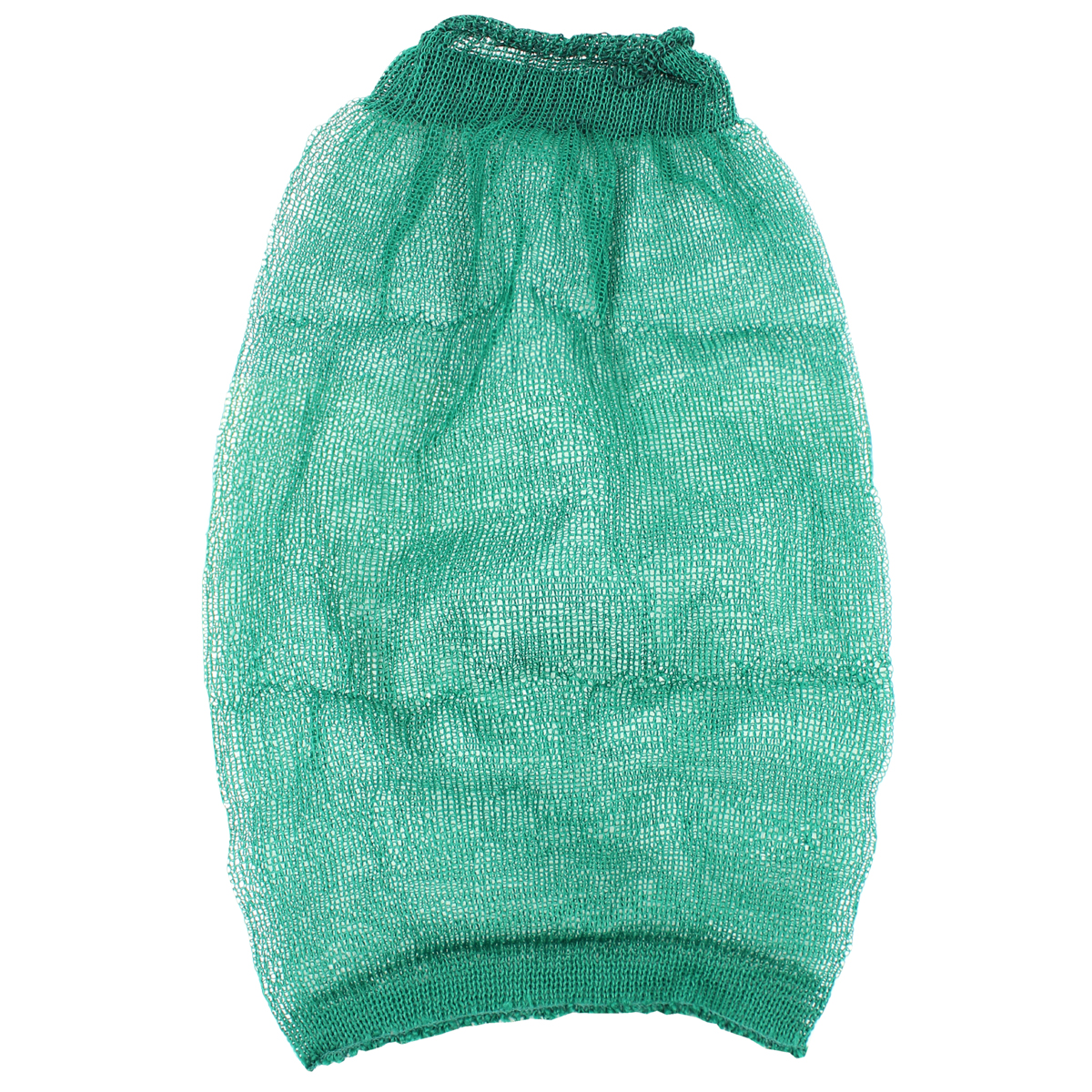

Filter bag 3130.165
Ionic Carbon 0950.000
Quickphos 0910.000
Silphos 0920.000

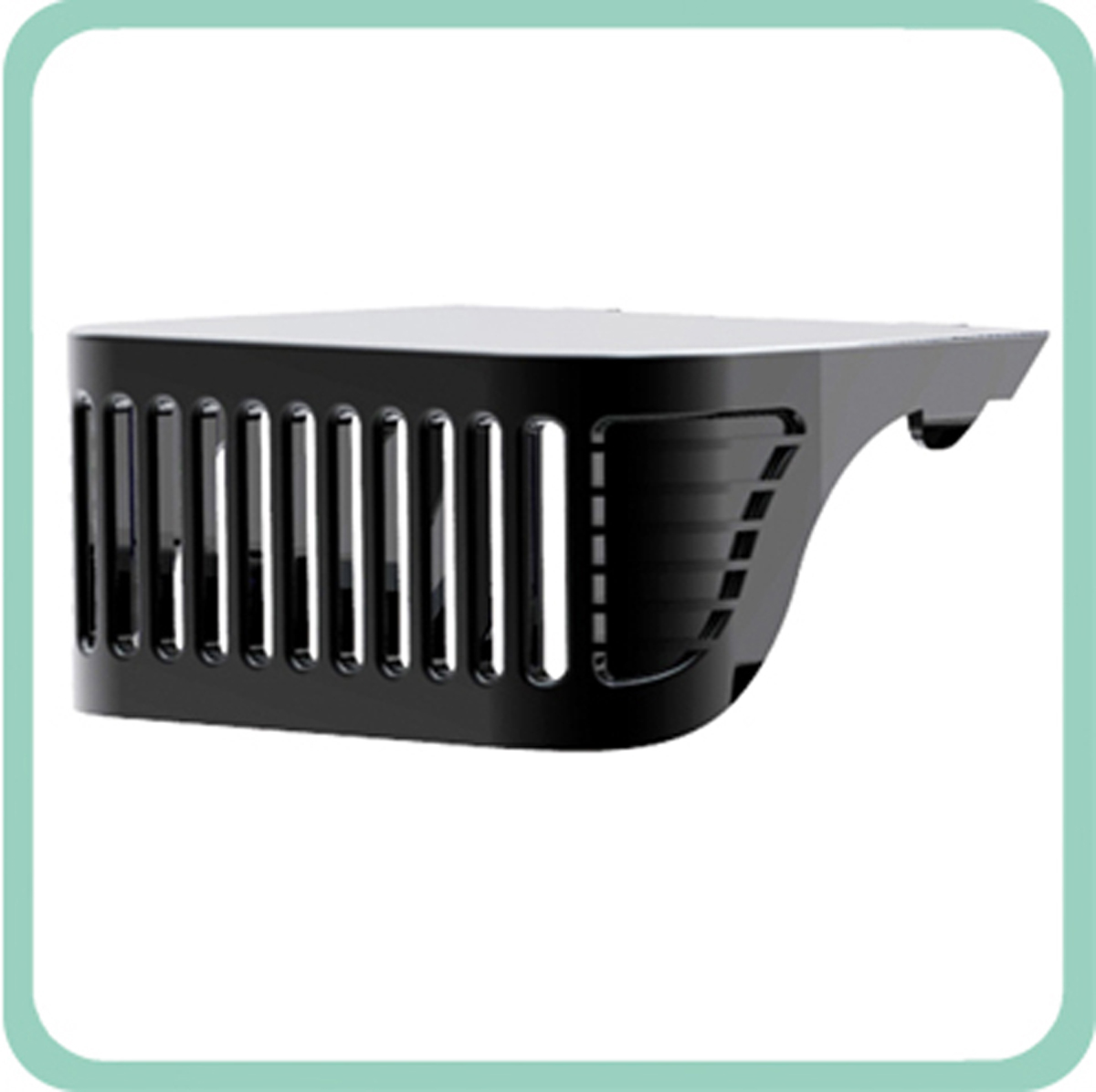

Adjustable bottom intake for heavy particles and sediments.

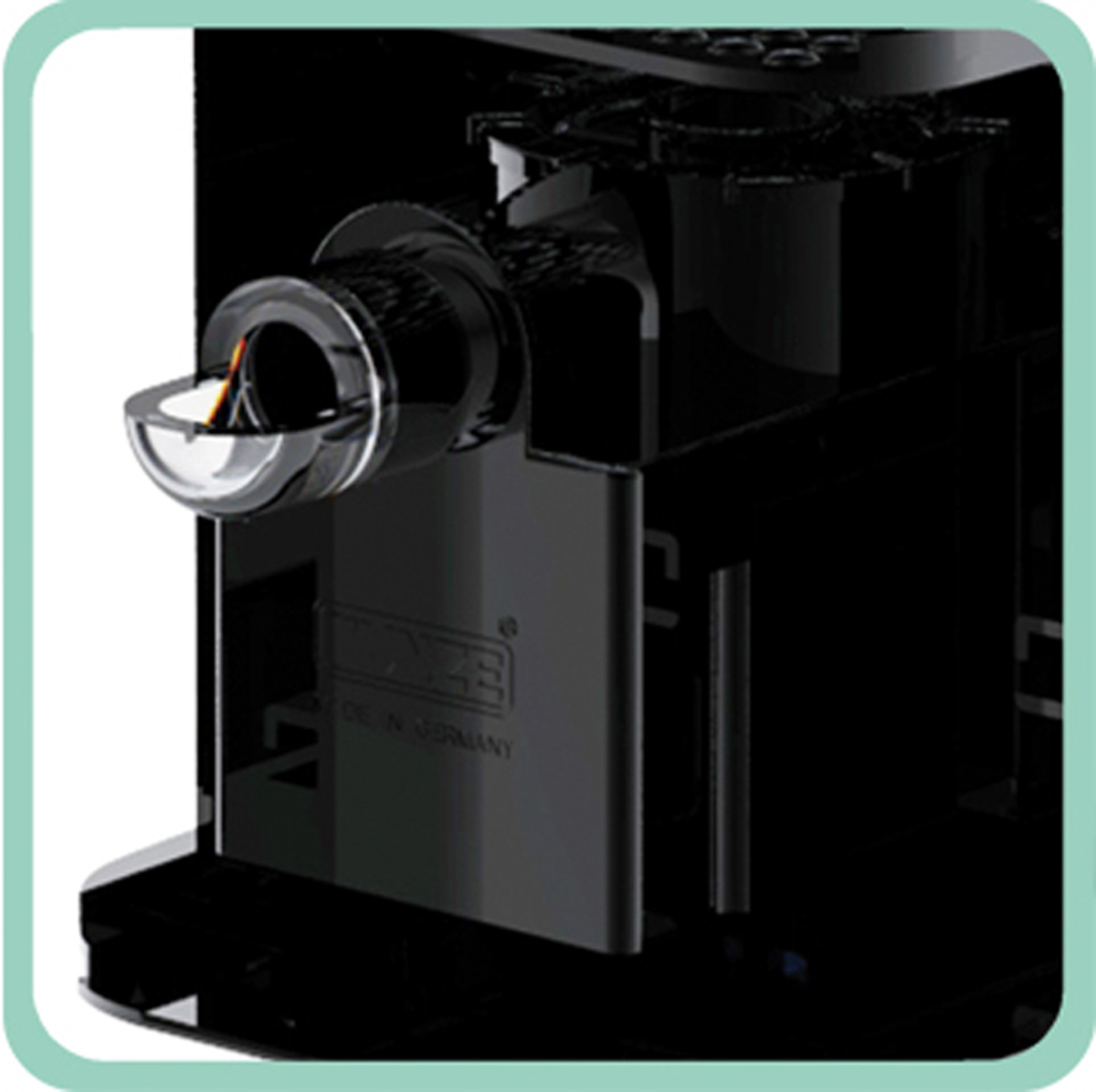

Adjustable Comline® energy saving pump with variable output of 250 - 850 l/h (70 - 225 USgal./h), energy consumption 2.5 - 4.5 W.
Comline® design: easy to use, elegant and unobtrusive in the aquarium.

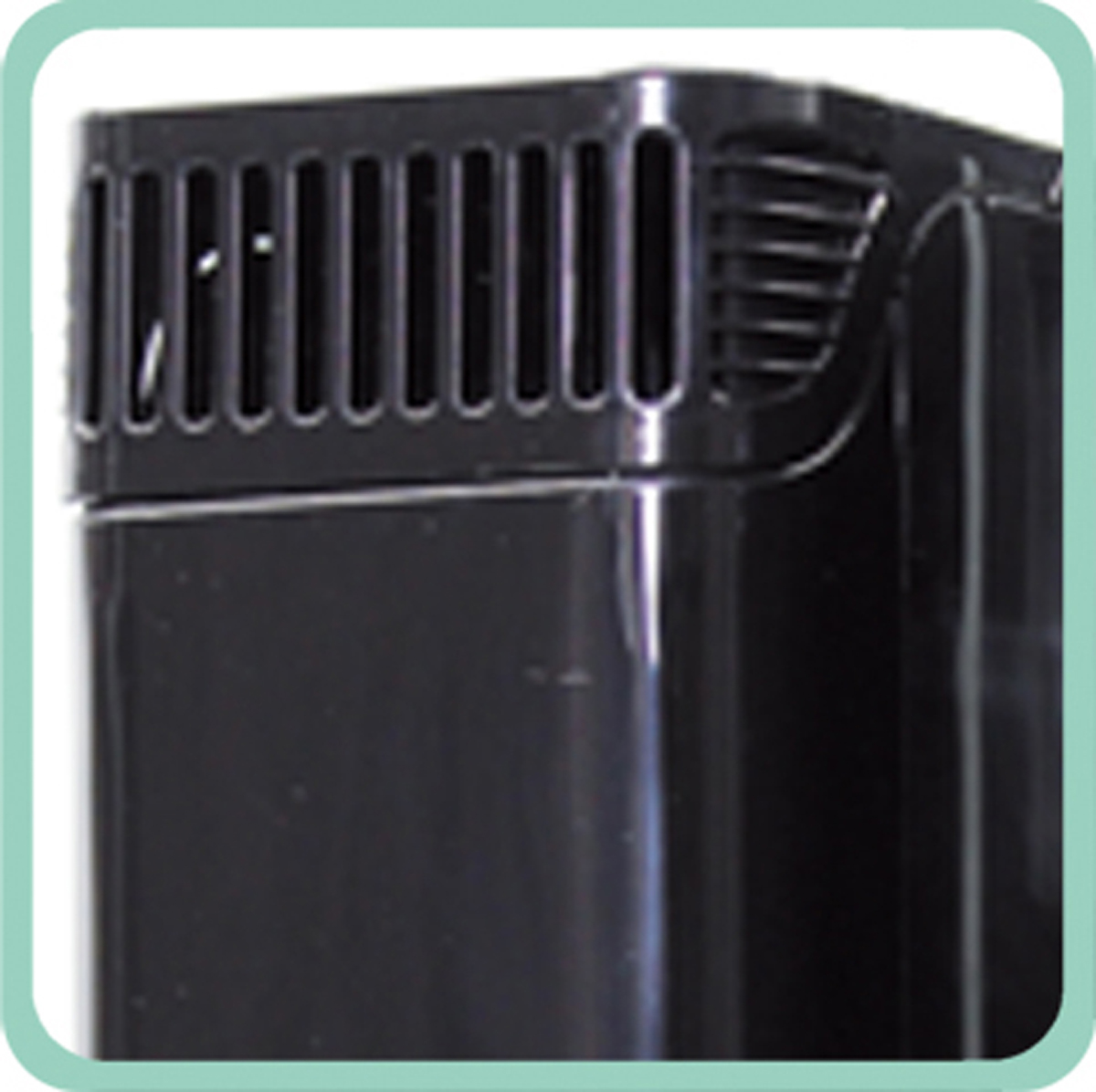

Surface intake with bacteria film removal.

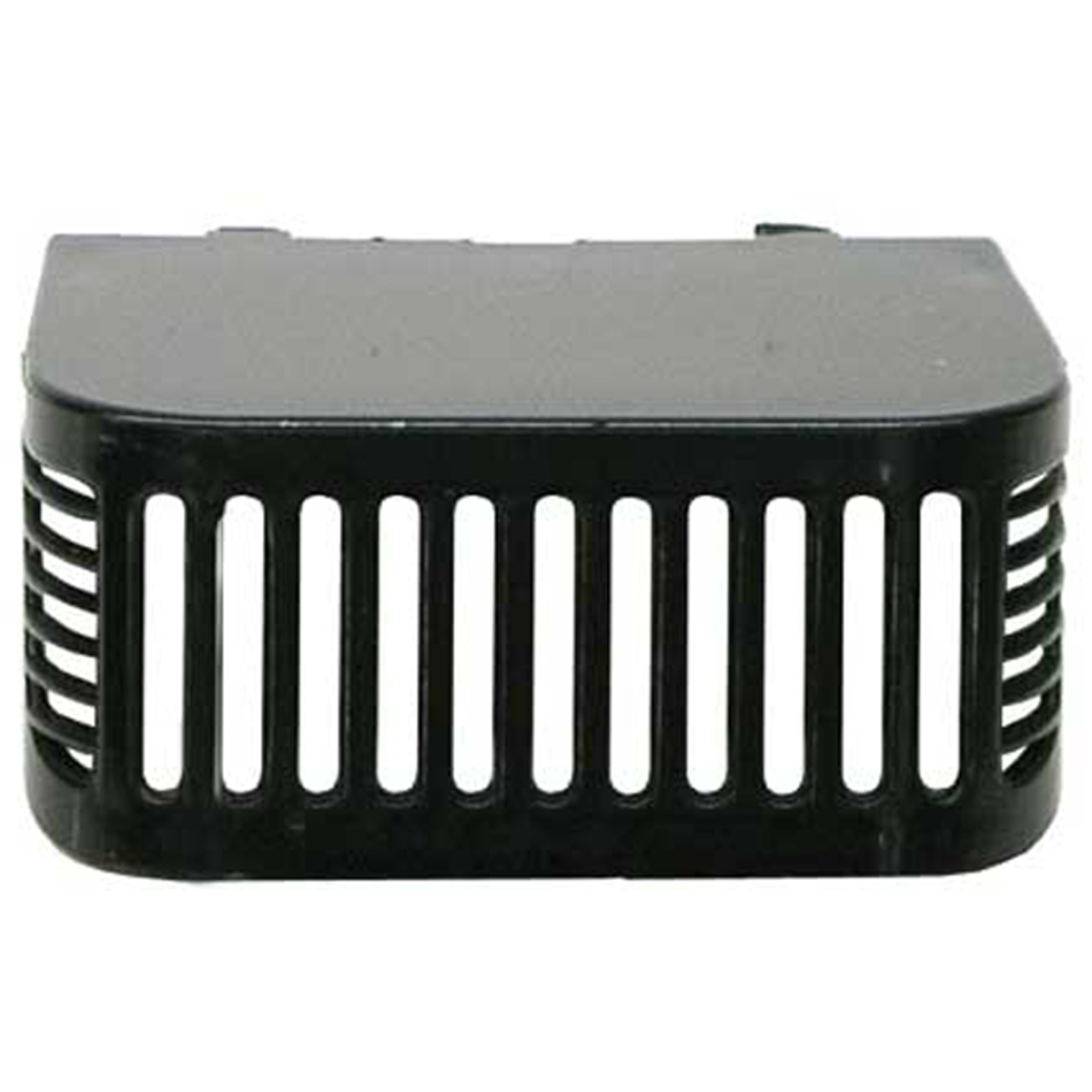

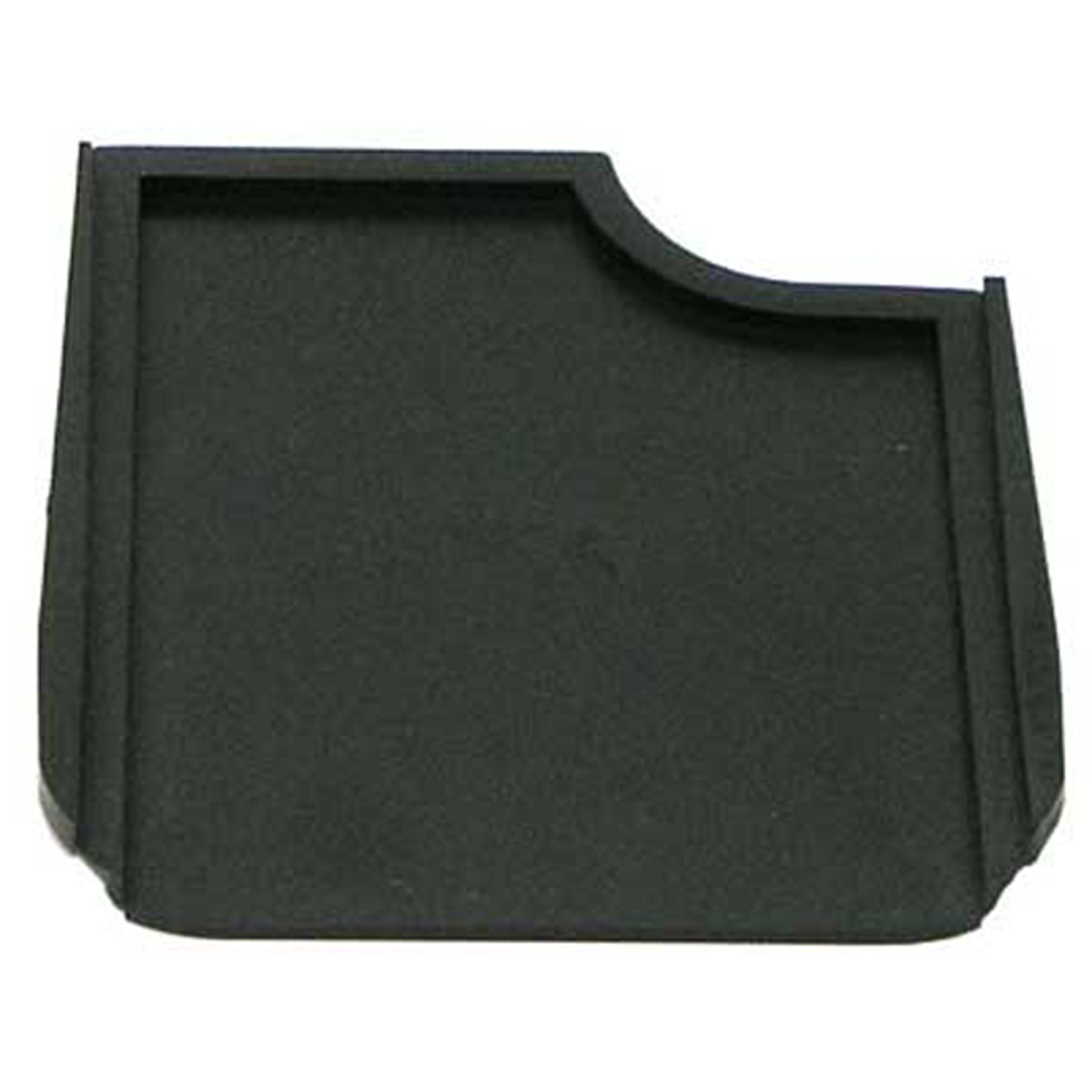

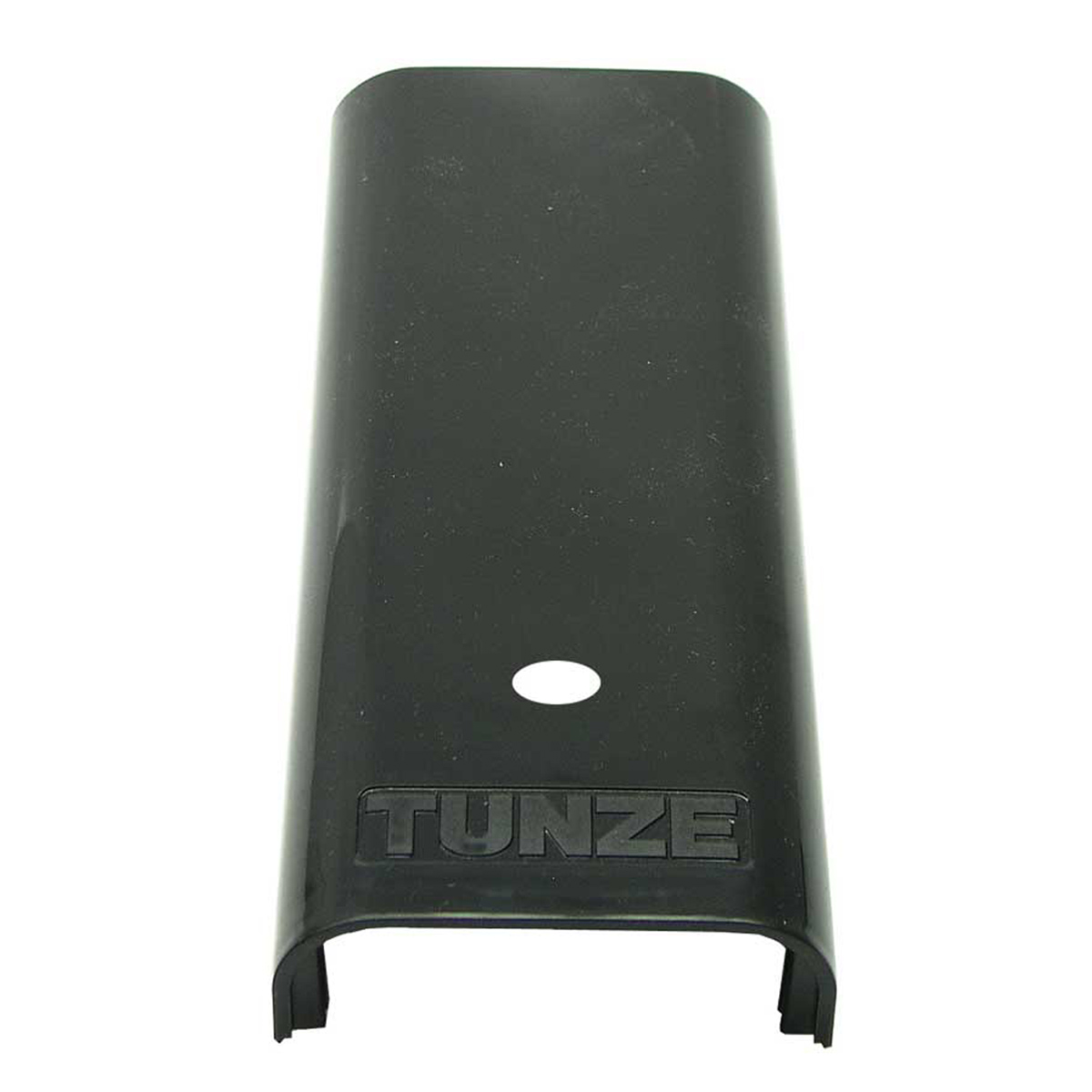

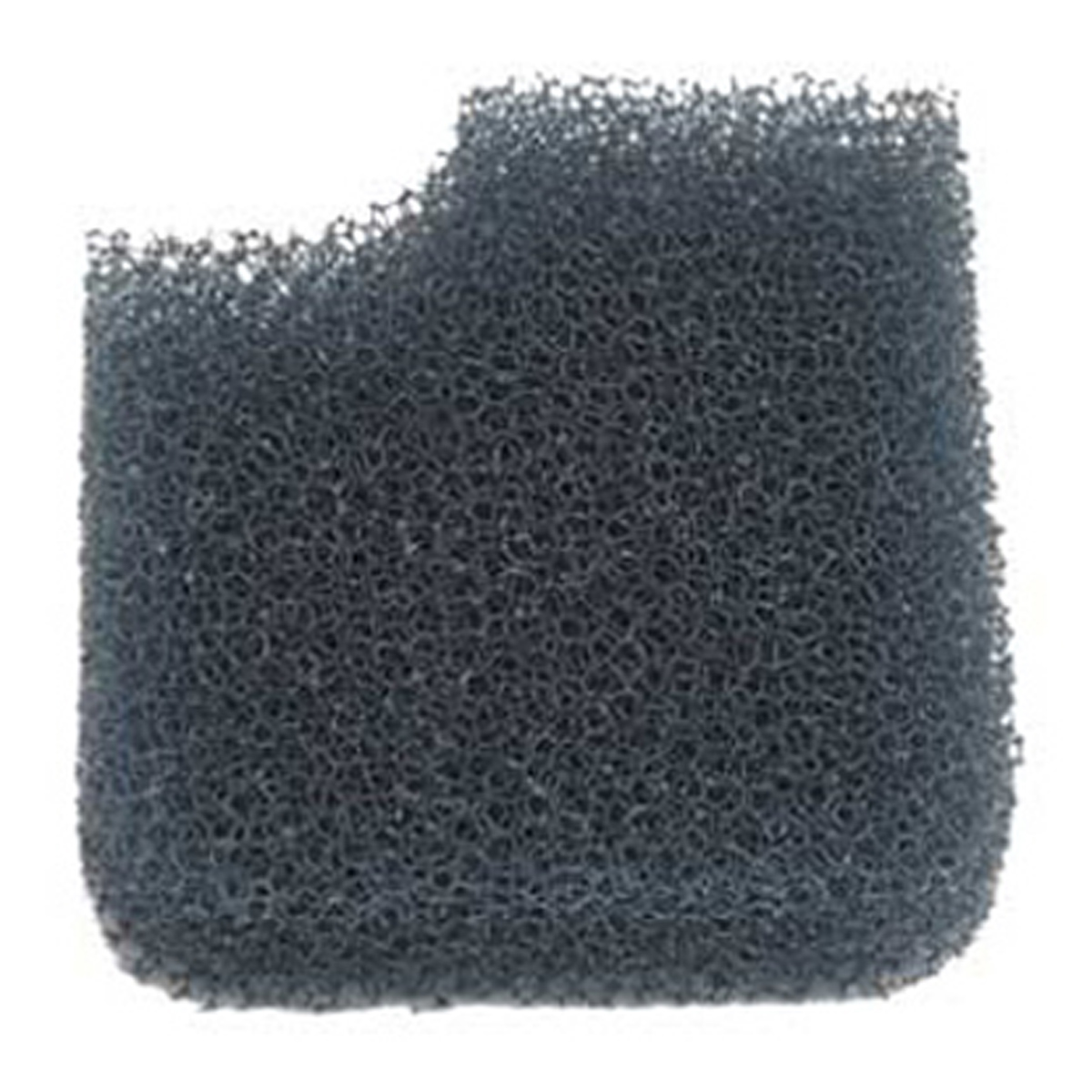

spare parts
- Special filter carbon for aquariums.
- Grain size around 3mm (0.12 in.).
- The filter carbon is highly purified and contains no phosphate.
- Bag of 1,000 ml / 33.8 fl.oz. (500 g / 17.6 oz. bulk weight)
*inkl. 19% MwSt, zzgl. Versandkosten
- Removes phosphates and silicates from the aquarium. Suitable for fresh and sea water.
- Suitable for two TUNZE® refill cartridges 870 or one 1670.
*inkl. 19% MwSt, zzgl. Versandkosten
- Pump output: 250 - 850 l/h (65 to 225 US gal./h)
- Energy consumption: 2.5 - 4.5 W
- Pumping head: 0.7 m (27.6 in.)
- Voltage / frequency: 230V/50Hz (115V/60Hz)
- Cable length: 2 m (78.7 in.), Dimensions without outlet: 60 x 60 x 40 mm (2.4 x 2.4 x 1.6 in.)
