Comline® Pump 2500 electronic
Product number:
2500.000
Instruction manual:
Product information "Comline® Pump 2500 electronic"
Pump capacity at 12 V: 550 to 1,200 l/h (145-317 Usgal/h)
Energy consumption: 3 to 10 W
Pressure height: 0.27 to 0.8 m (10.6"-31.5")
Pump capacity at 24 V: 1,200 to 2,200 l/h (317-581 Usgal/h)
Energy consumption: 10 to 31 W
Pressure height: 0.8 to 1.70 m max (31.5"-66.9")
Cable length to the controller: 2.7 m (106")
Dimensions without outlet: 90 x 70 x 50 mm (3.5" x 2.8" x 2")
Outlet: ø25 mm (1")

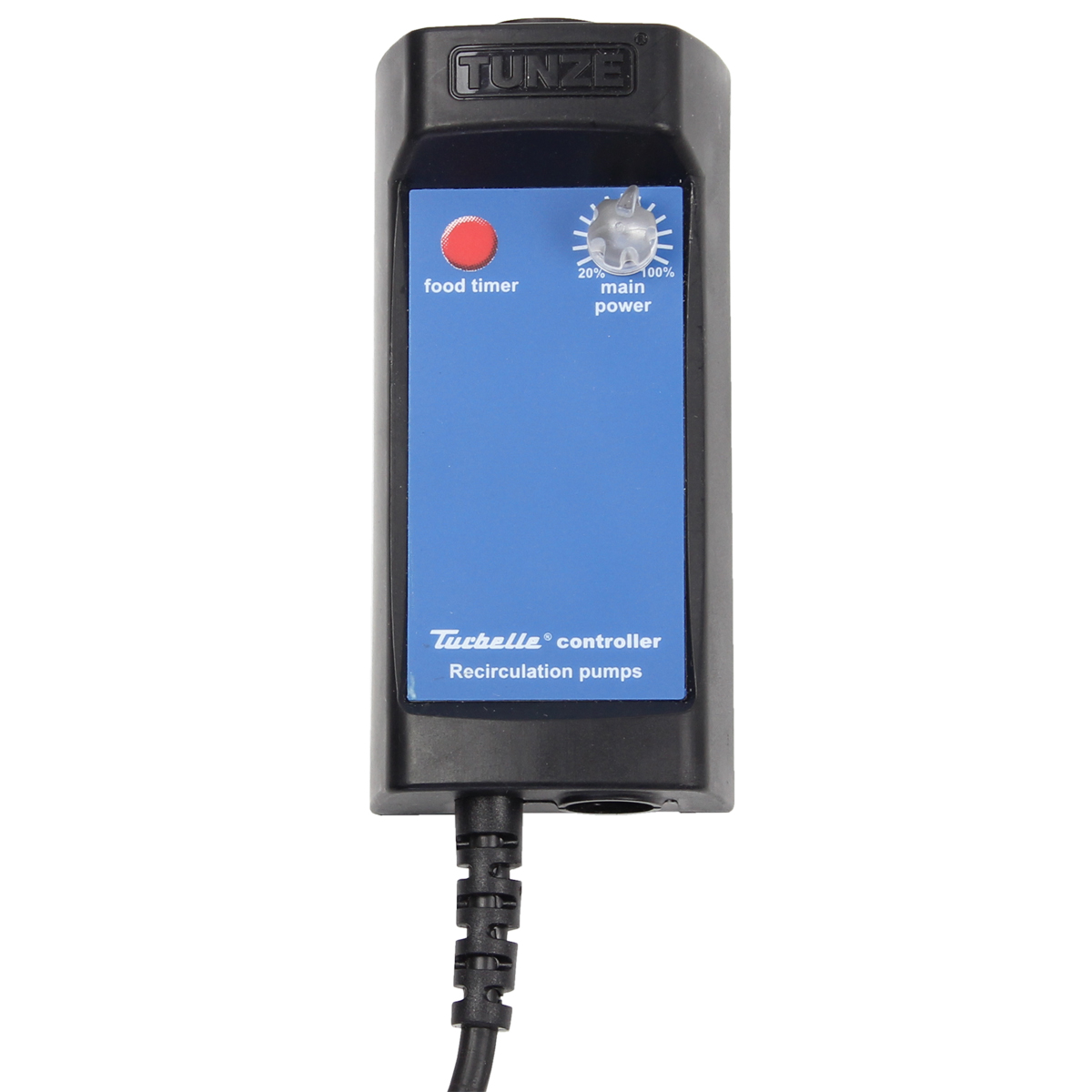

Completely assembled with Turbelle® controller basic 7090.200.
A power supply should be ordered separately.
Energy consumption: 3 to 10 W
Pressure height: 0.27 to 0.8 m (10.6"-31.5")
Pump capacity at 24 V: 1,200 to 2,200 l/h (317-581 Usgal/h)
Energy consumption: 10 to 31 W
Pressure height: 0.8 to 1.70 m max (31.5"-66.9")
Cable length to the controller: 2.7 m (106")
Dimensions without outlet: 90 x 70 x 50 mm (3.5" x 2.8" x 2")
Outlet: ø25 mm (1")
Completely assembled with Turbelle® controller basic 7090.200.
A power supply should be ordered separately.

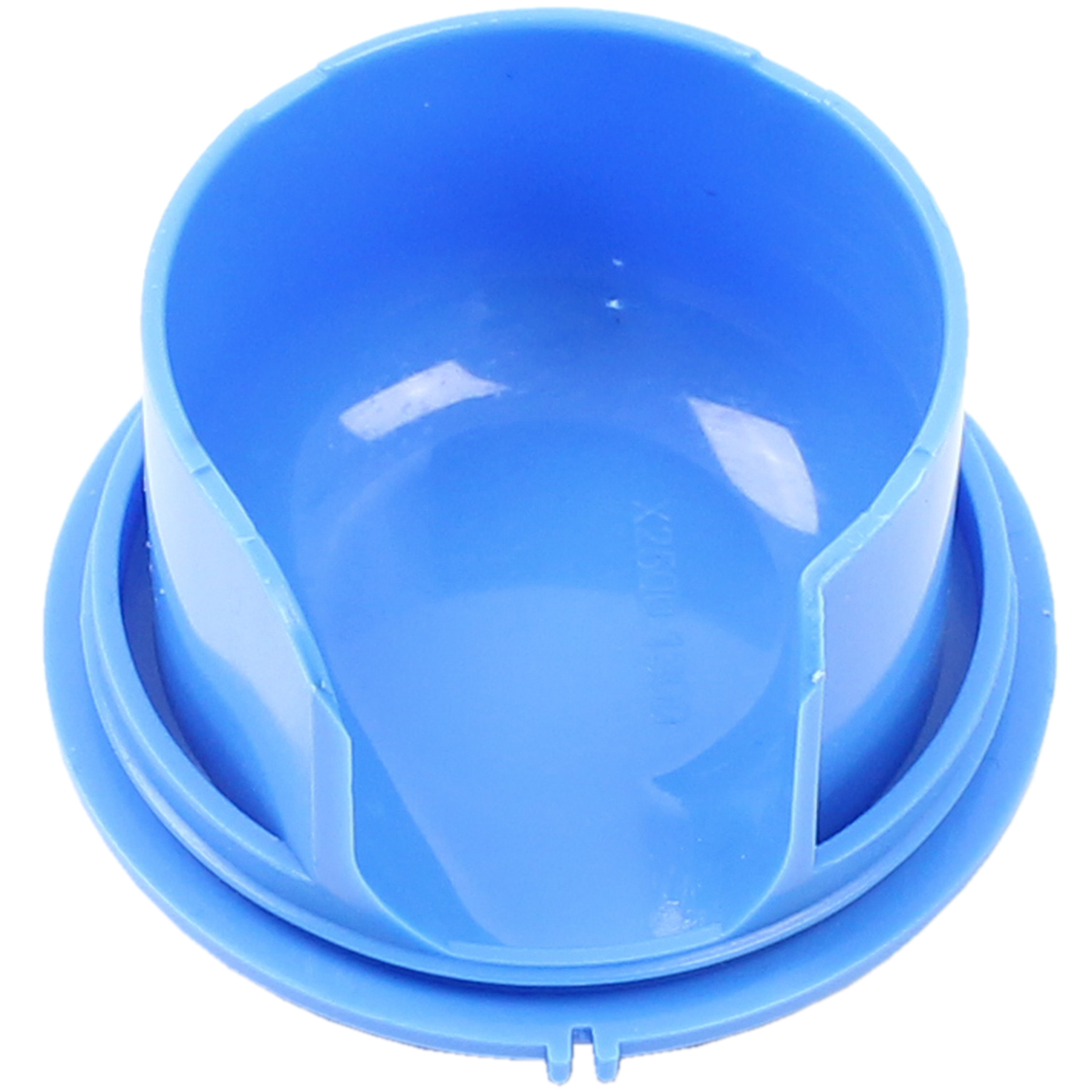

spare parts
